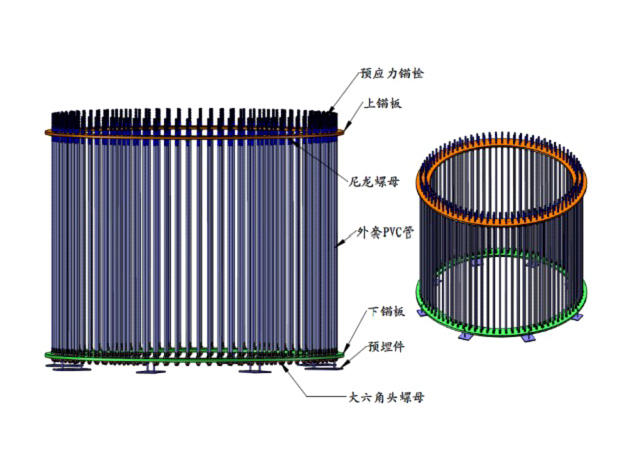

The basic prestressed anchor plate anchor bolt assembly is mainly used for the connection between the wind turbine tower cylinder and the foundation. It has been changed from the traditional foundation ring to the prestressed anchor bolt type, with good integrity and no weak links. While ensuring the rigid connection between the tower and the foundation, it reduces the amount of steel used in the embedded part of the steel tower into the foundation, and also simplifies the construction of this part, enhancing safety compared to traditional plate foundations. In addition, this product has great flexibility and can select appropriate foundation structure forms according to different geological conditions and wind zone categories of wind farms, achieving the goal of reducing concrete consumption and saving social resources.

Connection technology of prestressed anchor bolt assembly between tower and foundation

In response to the stiffness, strength mutation, and durability issues of the foundation ring, prestressed anchor bolts are used to connect the tower and foundation.

1. The anchor bolt runs through the entire height of the foundation and is anchored to the bottom plate of the foundation through a lower anchor plate. The structure is continuous, without stiffness or strength changes;

2. Cross installation of steel bars and anchor bolts without affecting each other, convenient construction, and good overall foundation integrity;

3. Using a hydraulic double cylinder high-strength bolt tensioner to apply accurate pre tension to the anchor bolts, the upper and lower anchor plates exert pressure on the reinforced concrete. When the foundation is subjected to bending, the compressive stress on the windward side of the concrete is released but always in a compressed state. The concrete does not produce cracks, its durability is improved, and the anchoring force of the concrete on the beam and plate reinforcement is also improved;

4. The vertical steel bars in the foundation column piers are almost stress free, and only the non prestressed steel bars in the prestressed reinforced concrete need to be configured according to the structure, making the foundation more economical;

5. The production and supply cycle of anchor bolt assembly parts is short, which can greatly reduce the construction cycle of owners and accelerate investment returns.
